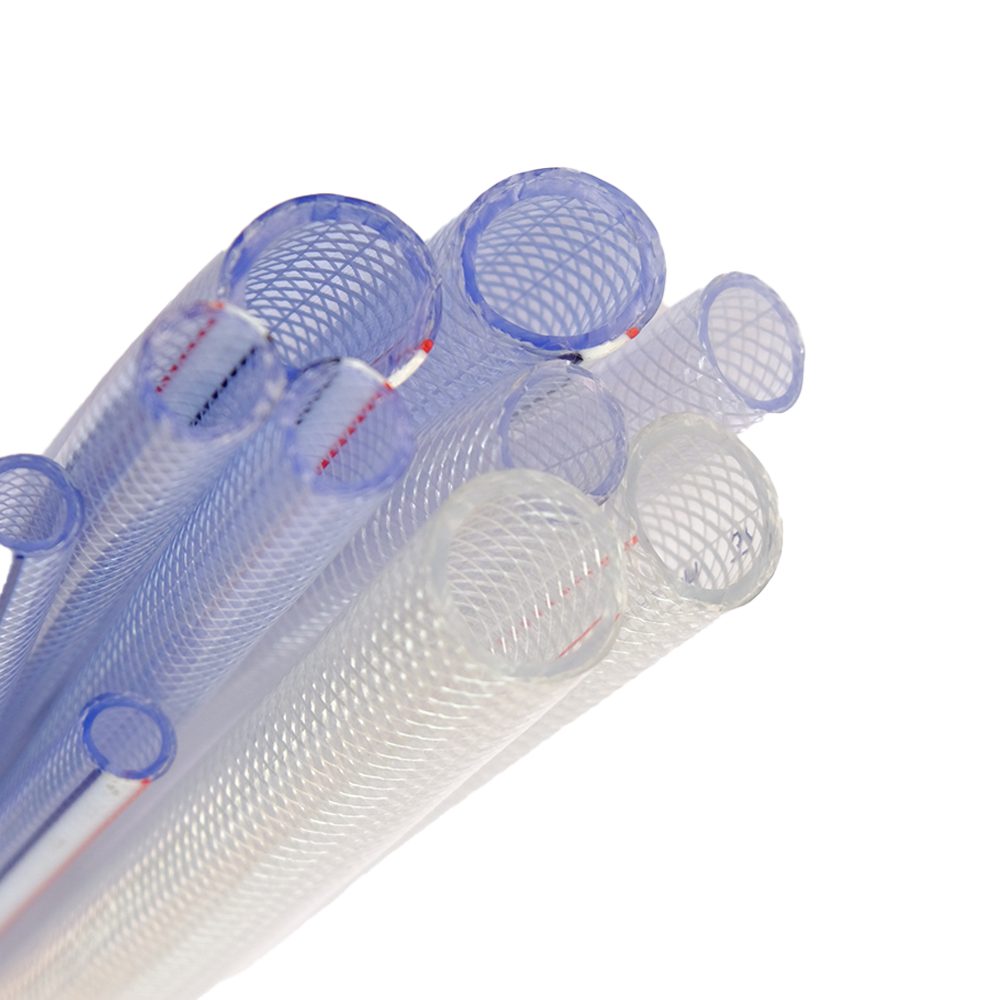

Fiber Reinforced PVC Hose
High-strength polyester braid between two PVC layers — for air, water, oil and gas lines that need pressure without bulk. 30-bar air-hose grade available.
High-strength polyester braid between two PVC layers — for air, water, oil and gas lines that need pressure without bulk. 30-bar air-hose grade available.
Custom diameters, wall thickness, colors and private-label packaging are produced to order. Tell us your spec and we quote within one working day.
| Size range (ID) | 5/32" – 3" (5 – 76 mm) |
|---|---|
| Working pressure | Up to 12 bar standard; 30 bar air-hose grade |
| Burst pressure | 3× working pressure (typical) |
| Temperature range | −5 ~ 65 °C |
| Common sizes shipped | 6.5×11.5, 8, 12×16 mm · cutting lengths 50 m / 100 m |
| Colors | Clear, black, green, yellow; twin-weld pairs on request |
| Printing | Customer branding printed along the hose |
Sizes shown are our typical production range. Other dimensions on request.
Send your size (ID × wall thickness), working pressure and destination port — we reply with FOB Qingdao pricing within one working day.
